FOURTH GENERATION CATALOGUE |

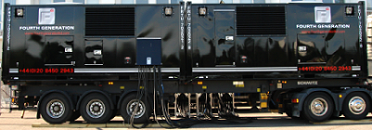

| TWIN-PACK | TYPE: 2 X 480 | |
| Type | Twin-Pack 480 | |
| Engine | Volvo Penta TAD 1242 GE | |
| Generator | Stamford HCI 534 C1 | |
| Output Standby Rating (max) | 2 x 387 kWe. / 50 cycle | |
| Output Standby Rating (max) | 2 x 464 kWe. / 60 cycle | |
| Output Prime Rating | 2 x 352 kWe. / 50 cycle | |
| Output Prime Rating | 2 x 422 kWe. / 60 cycle | |
| WEIGHTS | ||
| Weight empty of all fluids | 9.927 Kg. / 21.885 LB | |
| Weight with all operating fluids and empty fuel tank | 10.461 Kg. / 23.063 LB | |
| Weight with all operating fluids and full fuel tank | 11.991 Kg. / 26.436 LB | |
| OVERALL DIMENSIONS | ||
|
Twinset Length |
60.06 metres | |
| Twinset Width | 2.59 metres | |
| Twinset Height | 2.43 metres |
| SINGLE UNIT | TYPE: 500 kVA | |
| Type | 500 kVA | |
| Engine | Volvo Penta TAD 1641 GE | |
| Generator | Stamford HCI 534 D1 | |
| Output Standby Rating (max) | 1 x 448 kWe. / 50 Hz. | |
| Output Standby Rating (max) | 1 x 517 kWe. / 60 Hz. | |
| Output Prime Rating | 1 x 417 kWe. / 50 Hz. | |
| Output Prime Rating | 1 x 477 kWe. / 60 Hz. | |
| WEIGHTS | ||
| Weight with all operating fluids and empty fuel tank | 8.400 Kg. / 18.518 LB | |
| Weight with all operating fluids and full fuel tank | 10.200 Kg. / 22.487 LB | |
| OVERALL DIMENSIONS | ||
|
500 kVA Length |
5.50 metres | |
| 500 kVA Width | 1.50 metres | |
| 500 kVA Height | 2.53 metres | |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-400A | PowerLoc 3P+N+PE | 2 X PowerLoc 3P+N+PE | 1 X Main MCCB 630A/4P + shunt |
| 1 X RCD, adjustable, Keyswitch operated | |||
| Remote control |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-400A-2 | PowerLoc 3P+N+PE | 1 X PowerLoc 3P+N+PE looped | |
| 2 X PowerLoc 3P+N+PE | 2 X 250A/4P + shunt | ||
| 2 X RCD, adjustable, Keyswitch operated | |||
| 1 X Voltage sensing power analyzer | |||
| Remote Control |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-01 | PowerLoc 3P+N+PE | 1 X PowerLoc 3P+N+PE looped | 1 X Main MCCB 400A/4P + shunt |
| 3 X CEE 125A 5P | 3 X MCCB 125A/4P + shunt | ||
| 3 X RCD, adjustable, Keyswitch operated | |||
| 2 X CEE 32A 5P | 2 X MCCB 32A/4P + shunt | ||
| 2 X RCD, adjustable, Keyswitch operated | |||
| 3 X CEE 16A 3P | 3 X RCBO 16A/30mA/C/2P | ||
| Remote Control |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-02 | PowerLoc 3P+N+PE | 1 X PowerLoc 3P+N+PE looped | 1 X Main MCCB 400A/4P + shunt |
| 2 X CEE 125A 5P | 2 X MCCB 125A/4P + shunt | ||
| 2 X RCD, adjustable, Keyswitch operated | |||
| 2 X CEE 63A 5P | 2 X MCCB 63A/4P + shunt | ||
| 2 X RCD, adjustable, Keyswitch operated | |||
| 1 X CEE 32A 5P | 1 X MCCB 32A/4P + shunt | ||
| 1 X RCD, adjustable, Keyswitch operated | |||
| 3 X CEE 16A 3P | 3 X RCBO 16A/30mA/C/2P | ||
| Remote Control |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-03 | PowerLoc 3P+N+PE | 1 X Main MCCB 630A/4P + shunt | |
| 6 X CEE 63A 5P | 6 X MCCB 63A/4P + shunt | ||
| 6 X RCD, adjustable, Keyswitch operated |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-04 | PowerLoc 3P+N+PE | 1 X PowerLoc 3P+N+PE looped | 1 X Main MCCB 400A/4P + shunt |
| 4 X CEE 63A 5P | 4 X MCCB 63A/4P + shunt | ||
| 4 X RCD, adjustable, Keyswitch operated | |||
| 3 X CEE 32A 5P | 3 X MCCB 32A/4P + shunt | ||
| 3 X RCD, adjustable, Keyswitch operated | |||
| 3 X CEE 32A 3P | 3 X RCBO 32A/30mA/C/2P | ||
| 6 X CEE 16A 3P | 6 X RCBO 16A/30mA/C/2P | ||
| Remote Control |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-05 | CEE 125A 5P | 1 X Main 125A/C/4P | |
| 2 X CEE 63A 5P | 2 X MCCB 63A/4P | ||
| 2 X RCD, adjustable, Keyswitch operated | |||
| 1 X CEE 32A 5P | 1 X MCCB 32A/4P | ||
| 1 X RCD, adjustable, Keyswitch operated | |||
| 3 X CEE 16A 3P | 3 X RCBO 16A/30mA/C/2P |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-06 | CEE 125A 5P | 1 X Main 125A/C/4P | |
| 3 X CEE 32A 5P | 3 X MCCB 32A/4P | ||
| 3 X RCD, adjustable, Keyswitch operated | |||
| 6 X CEE 16A 3P | 6 X RCBO 16A/30mA/C/2P |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-07 | CEE 125A 5P | 1 X Main 125A/C/4P | |
| 6 X CEE 32A 3P | 6 X RCBO 32A/30mA/C/2P | ||
| 6 X CEE 16A 3P | 6 X RCBO 16A/30mA/C/2P | ||
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-125-01 | CEE 125A 5P | 1 X Main 125A/C/4P | |
| 3 X CEE 125 3P | 3 X MCCB 32A/4P |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-63-01 | CEE 63A 5P | 1 X Main 63A/C/4P | |
| 3 X CEE 63A 3P | 3 X RCD 63A/30mA + keyswitch |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-63-02 | CEE 63A 5P | 1 X Main 63A/C/4P | |
| 3 X CEE 32A 5P | 3 X MCCB 32A/4P | ||
| 3 X RCD 63A/30mA |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-63-03 | CEE 63A 5P | 1 X Main 63A/C/4P | |
| 12 X CEE 16A 3P | 12 X RCBO 16A/30mA/C/2P |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-32-01 | CEE 32A 5P | 1 X Main 32A/C/4P | |
| 6 X CEE 16A 3P | 6 X RCBO 16A/30mA/C/2P |
|
EQUIPMENT |
INPUT | OUTPUT | PROTECTION |
| FG-32-02 | CEE 32A 5P | 1 X Main 32A/C/4P + Keyswitch | |
| BROADCAST ONLY | 6 X CEE 16A 3P | 3 X MCCB 16A/2P |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-32-03 | CEE 32A 5P | 1 X Main 32A/C/4P | |
| 3 X CEE 32A 3P | 3 X RCBO 32A/30mA/C/2P | ||
| 3 X CEE 16A 3P | 3 X RCBO 16A/30mA/C/2P |
|
EQUIPMENT |
INPUT | OUTPUT | PROTECTION |
| FG-01-A | PowerLoc 1P+N+PE | 2 X 250A/4P | |
| BROADCAST ONLY | 2 X CEE 125 3P | 2 X MCB 125A/2P | |
| 2 X CEE 63A 3P | 2 X MCB 63A/2P | ||
| 2 X CEE 32A 3P | 2 X MCB 32A/2P | ||
| 1 X CEE 16A 3P | 1 X MCB 16A/2P |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-63-B | CEE 63A 3P | 1 X Main MCB 63A/C/2P | |
| 6 X CEE 16A 3P | 6 X RCBO 16A/30mA/C/2P |
|
EQUIPMENT STOCK NUMBER |
INPUT | OUTPUT | PROTECTION |
| FG-32-C | CEE 32A 3P | ||
| 2 X CEE 16A 3P | 2 X RCBO 16A/30mA/C/2P |
|
EQUIPMENT |
INPUT |
OUTPUT |
|
|
FG-UPS-6 |
120/208/240 V, 50/60 Hz |
5.1 kW |
